Oil Temp Probe

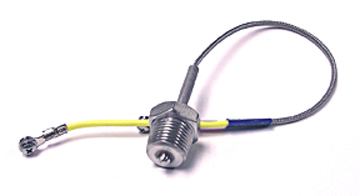

OIL TEMPERATURE Probe 4 Sizes -

K-Type thermocouple Red/Yellow in Yellow

1/8" NPT = .400 inches outside diameter - P/N 610C-022-1

1/4" NPT = .530 inches outside diameter - P/N 610C-022-2

3/8" NPT = .670 inches outside diameter - P/N 610C-022-3

5/8" UNF =.625 inches straight thread - P/N 610C-022-5-18

Oil Temp

"Supplementary Only" Not Primary

What is National Pipe Thread? - http://en.wikipedia.org/wiki/National_pipe_thread

CARB Probe

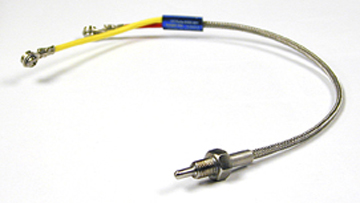

Carb Temperature Probe P/N 610C-021

1/4 inch - 28 threads per inch

K-Type thermocouple Red/Yellow in Yellow

Carb Temp

Manifold Fitting

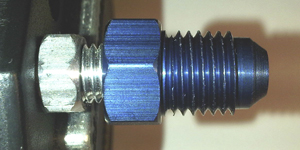

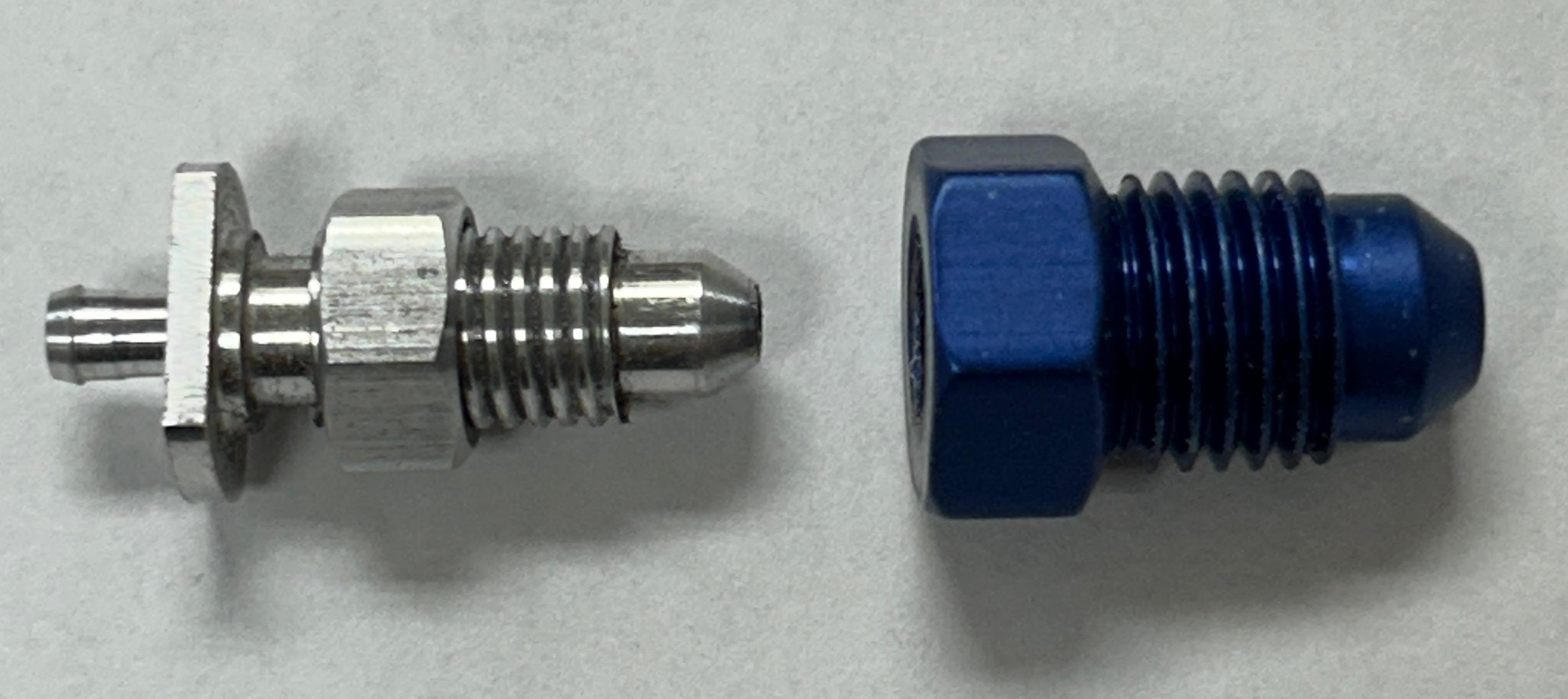

Pressure Port flare fitting Part # 610C-034 - AN2 to AN4 Fitting with 37 degree flare

Fitting

OAT Probe

OAT/IAT Probe P/N 1200-021

OAT

Insights OAT and IAT probes provide accurate measurement of air temperatures both inside and outside the cabin. Durable and long lasting, these probes are easy to install.

National Pipe Thread?

See - Click Here

Call: 905-871-0733

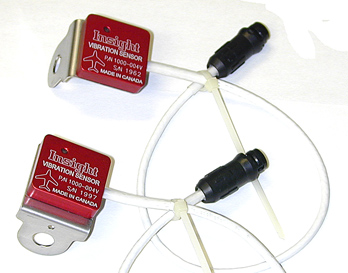

Oil, Carburetor, OAT, & Vibration Sensors

Insight Manufactures All Of It's Sensors In-House

CARB Probe

Manifold Fitting

OAT Probe
